The Mystery of Composite Aluminum Foil for HVAC Ducts

In HVAC duct systems, composite aluminum foil is not just a decorative layer, but a "functional core" that determines the duct's thermal insulation, airtightness, and durability. By precisely combining aluminum foil with polymer substrates, it solves pain points of traditional ducts (such as sheet metal and fiberglass-reinforced plastic) like high energy consumption and easy corrosion. Its "mystery" lies in the collaborative design of materials and scenario-specific functional adaptation.

1. Material Composition: Collaborative Logic of Composite Structure

The core of composite aluminum foil for ducts is a multi-layer structure of "aluminum foil + functional substrate". The base aluminum foil requires a purity of over 99.4% and a thickness of 0.012-0.02mm. After cold rolling and passivation, it has both flexibility and oxidation resistance. The composite layer is matched with different materials based on needs: when combined with glass fiber, it forms an "aluminum foil + glass fiber mat" structure, focusing on thermal insulation with a thermal conductivity as low as 0.032W/(m·K), far superior to sheet metal ducts (0.45W/(m·K)); when combined with polyester film, it creates an "aluminum foil + polyester film" structure, emphasizing moisture resistance and tensile strength with a tear strength of 18N/25mm, suitable for humid environments. High-end products also add a basalt fiber layer, increasing high-temperature resistance to 200℃, suitable for high-temperature exhaust ducts. The composite process adopts hot-press lamination, with the adhesive's VOC content below 50g/L, meeting indoor environmental standards.

2. Core Functions: Solving Duct System Pain Points

The "mystery" of composite aluminum foil first lies in functional breakthroughs. Firstly, it has significant thermal insulation and energy-saving effects—in air conditioning ducts, the composite aluminum foil lining can reduce cold loss rate from 15% (traditional sheet metal ducts) to below 5%. For a 30,000㎡ office building, this saves approximately 6,000 kWh of air conditioning energy annually. Secondly, it excels in airtightness and leak prevention—the seamless nature of aluminum foil, combined with the ductility of the composite layer, keeps the duct joint leakage rate below 1.5%, far lower than the national standard (≤8%), avoiding air loss and noise. Thirdly, it has strong corrosion resistance and aging resistance—aluminum foil treated with chromate passivation can withstand weak acid-base environments (pH 4-9). In humid scenarios like basements and kitchens, its service life reaches 15 years, twice that of ordinary sheet metal ducts.

3. Scenario Adaptation: Customized to Meet Diverse Needs

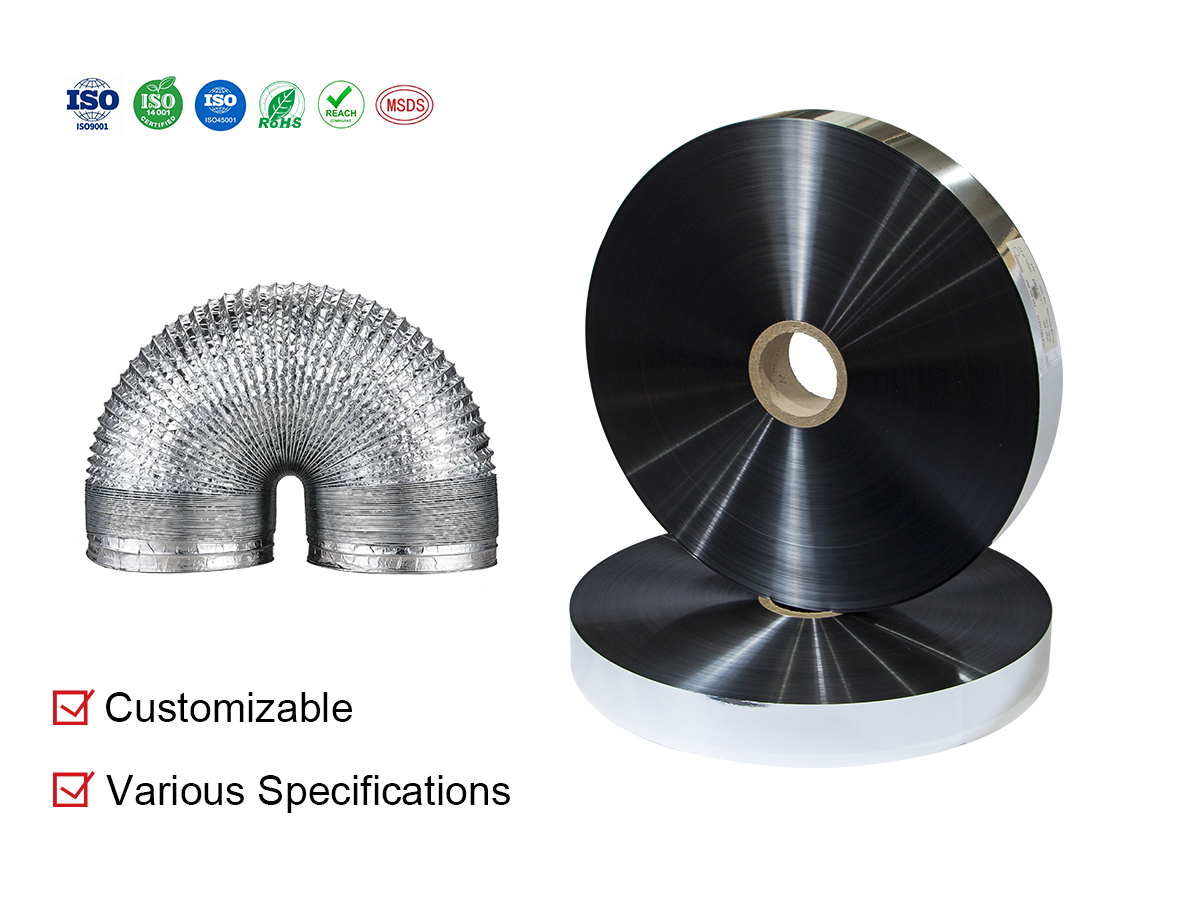

The "mystery" of composite aluminum foil also lies in its flexible structural adjustment to meet diverse HVAC scenario needs. In civil buildings, the "aluminum foil + glass fiber" composite structure is mostly used in fresh air ducts, combining thermal insulation and sound absorption to reduce duct operation noise to below 35 decibels. In industrial plants, the "aluminum foil + basalt fiber" composite structure is suitable for high-temperature exhaust ducts, withstanding 180℃ hot air for a long time. In clean places (such as hospital operating rooms), composite aluminum foil is added with a nano antibacterial coating, which inhibits Escherichia coli and Staphylococcus aureus by 99%, preventing microbial growth in ducts from polluting air. Additionally, for flexible ducts, composite aluminum foil is combined with polyester fabric, enabling 360° bending without breaking, suitable for installation in narrow spaces like ceilings and equipment mezzanines.

4. Technological Upgrade: New Direction of Low-Carbon and Intelligence

With the advancement of "dual carbon" goals in HVAC engineering, the "mystery" of composite aluminum foil is also evolving. Currently, the industry has promoted the "recycled aluminum foil + degradable adhesive" combination, with recycled aluminum accounting for 55%, reducing carbon emissions by 60% compared to primary aluminum production. Some enterprises have also developed "self-healing composite aluminum foil"—when minor damages occur on the surface, polymer materials in the composite layer can automatically fill gaps to maintain airtightness. In the future, "smart composite aluminum foil" integrated with IoT technology will realize real-time temperature and humidity monitoring, providing data support for energy optimization of duct systems.

From material composite to functional customization, from energy saving to intelligent upgrading, composite aluminum foil for ducts, with its "thin yet strong" characteristics, has become a key carrier for efficient operation of HVAC systems. The design logic of multi-layer collaboration and scenario-specific adaptation is the core mystery behind its irreplaceable role in engineering.
